Unlock Stunning 4K Clarity: Discover the Power of the HC-VX3 Digital Video Camera

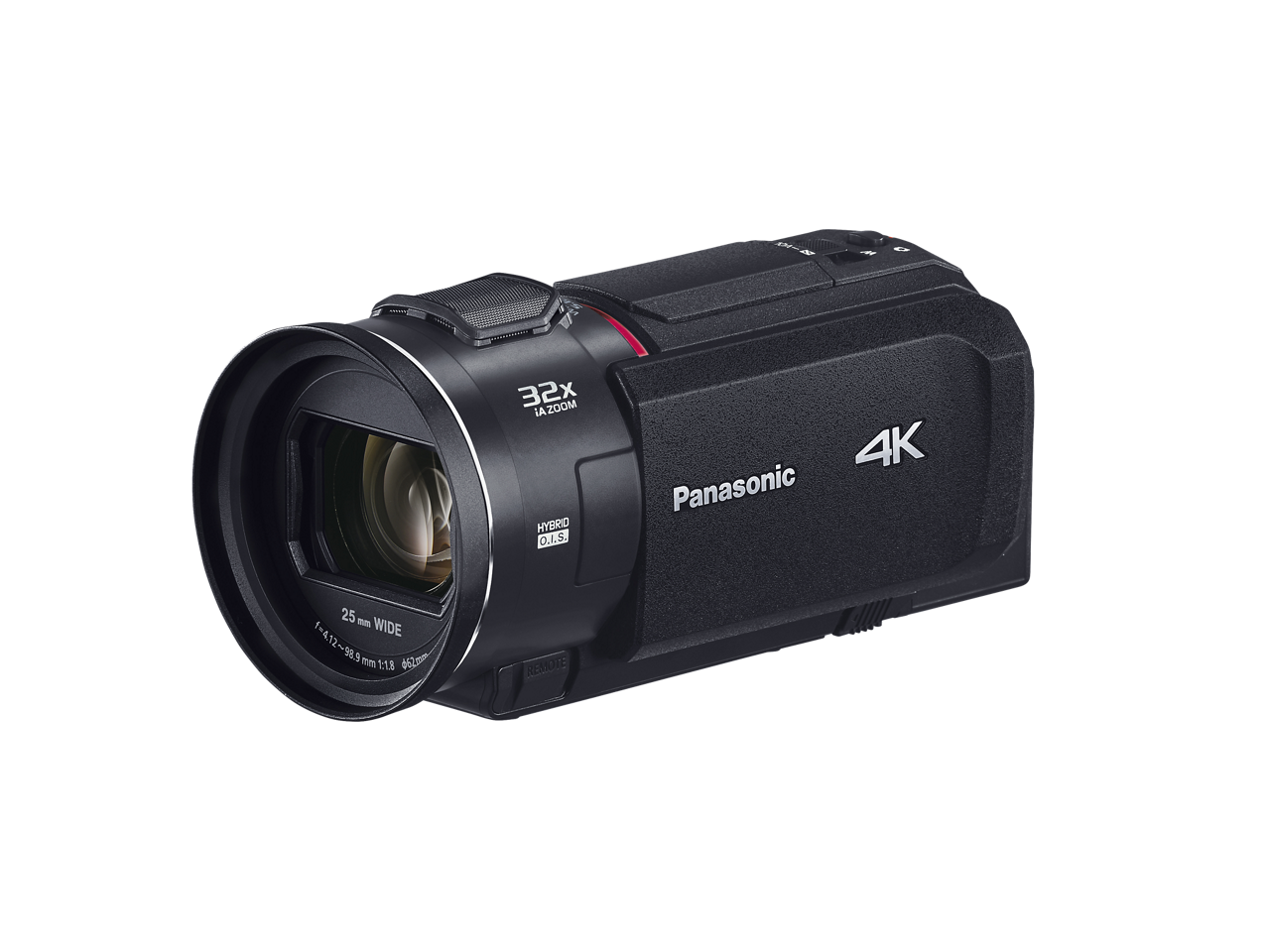

Detailed information Digital 4K video camera HC-VX3 | Digital video camera | Panasonic
Specifications/Specifications
Image sensor Image sensor 1/2.5 type MOS solid-state image sensor Effective pixel count Video 4K: 8.29 million (16:9) / 2K: 6.17 million (16:9) Still image 8.29 million (16:9) / 6.22 million ( 4:3) Lens F value (f: focal length) 1.8 (WIDE)/4.0 (TELE) f: 35mm format conversion Video: 25.0mm to 600.0mm (4K30p/24p 16:9 / 2K24p 16:9) / 28.9mm ~693.7mm (2K60p 16:9 / 2K30p 16:9)
Still images: 25.0mm to 600.0mm (16:9) / 30.6mm to 734.4mm (4:3) Aperture Automatic/manual correction Minimum imaging distance Approximately 1.2m from the front of the lens (all areas), approximately 10cm (WIDE close), iA Macro mode approx. 5cm (near WIDE), approx. 1.2m (TELE end) Filter diameter 62mm Lens cover Auto (opens and closes automatically) Zoom iA zoom 4K: 32x, 2K: 48x, optical zoom, digital zoom: 70x/250x (Max. value can be set in 2 levels)
Low speed: approx. 28.2 seconds, high speed: approx. 2.9 seconds (at 24p: approx. 4.3 seconds) Monitor 7.6cm (3.0 type) with capacitive touch panel LCD monitor Recording media ●Sold separately SD memory card (512MB or more), SDHC memory card, SDXC memory card (up to 512GB)
●No built-in memory Shooting functions Image stabilization method Optical (equipped with hybrid image stabilization and image stabilization functions) White balance adjustment Automatic tracking and white set/Sunny/Cloudy/Indoor 1/Indoor 2/Fluorescent lighting (TTL method) Minimum subject Illuminance 1.5 lx (Scene mode Low Light 1/30 o’clock), Night mode (color): 0.5 lx Video recording format[AVCHD]Compliant with AVCHD standard Ver 2.0 (AVCHD Progressive)
[4K MP4/MP4/24p]Compliant with MPEG-4 AVC file standards (.MP4) Number of recording pixels AVCHD;1080/60p:1920×1080/60p PH/HA/HG/HE:1920×1080/60i, 4KMP4:2160 :3840×2160/30p MP4;1080/50M, 1080/28M:1920×1080/60p, 720:1280×720/30p 24P;2160/24p:3840×2160/24p, 1080/24p:1920×1080/24p Transfer rate 1080/60p: Maximum 28Mbps/VBR, PH: Maximum 24Mbps/VBR, HA: Average 17Mbps/VBR, HG: Average 13Mbps/VBR, HE: Average 5Mbps/VBR, 2160/30p(72M): Maximum 72Mbps/VBR , 2160/24p(72M): Max. 72Mbps/VBR, 1080/50M: Max. 50Mbps/VBR, 1080/28M: Max. 28Mbps/VBR, 2160/24p: Max. 72Mbps/VBR, 1080/24p: Max. 50Mbps/VBR, 720 :Average 9Mbps/VBR Shutter speed (manual) When auto slow shutter is ON:[60i/60p/30p]1/30～1/8000,[24p]1/24～1/8000
When auto slow shutter is OFF[60i/60p/30p]1/60～1/8000,[24p]1/48 – 1/8000 Still image Recording method JPEG (DCF/Exif2.2 compliant) Number of recording pixels Photography mode[16:9]25.9M, 14M, 2.1M
［4:3］20.4M、10.9M、0.3M
Video shooting mode 4K mode: 20.4M, 8.3M FHD mode: 14M, 2.1M Shutter speed (manual) 1/2 – 1/2000 Audio Recording method AVCHD: Dolby Audio (5.1ch/2ch)
MP4: AAC (2ch) Microphone 5.1ch surround, with zoom microphone function/gun microphone/stereo microphone function Wind noise reduction ○ (wind noise canceller) System interface HDMI terminal output Micro HDMI terminal, 2160p/1080p/1080i/480p Audio output HDMI: AVCHD: Dolby Audio or LPCM, For MP4: LPCM Headphone output 3.5mm diameter stereo mini jack, output level: 85mV (load impedance 32Ω) External microphone input 3.5mm diameter stereo mini jack, plug-in power compatible, input level: -60dBV (Microphone sensitivity -40dB equivalent: 0dB=1V/Pa 1kHz), Input impedance: 3900Ω Line input 3.5mm diameter stereo mini jack, Input level: -10dBV USB terminal USB Type-C terminal, high speed USB (USB2.0)
Card reader function Read only (no copyright protection function)
Compatible with USB power supply and USB charging (when powered off) Wi-Fi® Compliant standard IEEE802.11b/g/n compliant Frequency Center frequency 2412 to 2462MHz[1～11ｃｈ]Internal charging ○ Basic battery system VW-VBT190/VBT380 Display language Japanese/English External dimensions (including protrusions) Width 68 mm x Height 77 mm x Depth 158 mm (when the included battery pack is installed) /
Width 72mm x Height 77mm x Depth 166mm (When the included battery pack and lens hood are attached) Body weight Approx. 433g/Approx. 439g (When the lens hood is attached) Weight when in use Approx. 520g (When using the included battery pack)/
Approximately 526g (when using the included battery pack, SD card sold separately, and lens hood attached) Power supply DC3.6V/5.0V (battery/AC adapter) Power consumption Recording: 3.8W Charging: 6.0W Allowable operating temperature/humidity Storage: -10℃~60℃, 0%RH~90%RH Operation: 0℃~40℃, 10%RH~80%RH Other notes★1
- 〇This product is available only at limited locations. 〇Some stores will sell at the price specified by the manufacturer.
