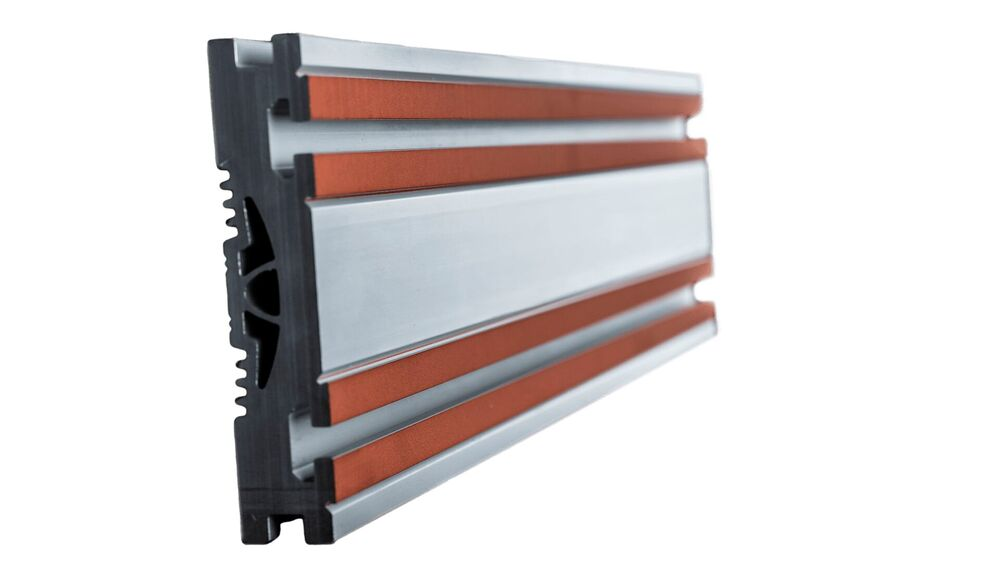

Cold Spray Technology: Creating Novel Material Combinations

Powering teh Future: Thermal Management ⁢adn Reliability with GaN and SiC in Power ‍Designs

The world of power electronics is rapidly evolving, driven by the increasing demand for efficient and reliable power solutions. Gallium⁤ nitride (GaN) and silicon Carbide (SiC) are emerging as key players, especially in applications up to 50 kW. But harnessing their⁣ full potential requires careful attention to thermal management and overall system reliability. Let’s dive into how⁣ these factors are shaping the future of⁢ power design.

The Rise of GaN ⁣and SiC

gan and sic offer significant advantages over conventional silicon-based devices.Think faster switching speeds, lower on-resistance, and higher breakdown ⁢voltages.This translates to more efficient power conversion, smaller and⁢ lighter designs, and the ability to operate at higher temperatures. For applications like electric ‍vehicle chargers, solar inverters, ⁣and industrial power supplies, these benefits are game-changers.

However, these advanced materials also present unique challenges. Their higher power density means more ⁢heat generation in a smaller area. If not managed ⁣effectively, this heat can compromise performance, reliability, and⁣ even lead to catastrophic failure.

Thermal Management: Keeping Things Cool

Effective thermal management is crucial for unlocking the full potential ‍of ⁢GaN and SiC. Here’s ⁤a look at some key strategies:

Heat Sinks: These are the workhorses of thermal management,dissipating heat⁢ away from the device. Choosing the right heat sink‍ involves considering factors like thermal resistance, surface area, and airflow.
Thermal interface Materials (TIMs): TIMs fill the microscopic gaps between the‍ device and the heat ⁣sink, improving thermal conductivity. ‍Selecting the ⁢appropriate TIM is critical for efficient heat transfer.
Advanced ⁢Cooling Techniques: ‍For high-power applications, liquid cooling or vapor chambers may be necessary to provide more⁣ aggressive cooling.
Layout Optimization: The physical layout of the power circuit can substantially impact thermal performance. Minimizing thermal resistance and ensuring even heat distribution are key considerations.

Reliability: Building a Robust System

Reliability is paramount⁣ in any ‍power electronic system. Here’s⁢ how to ensure robust performance with GaN and sic:

Component Selection: Choosing high-quality, reliable components is the⁢ foundation of a robust design.This includes not only the GaN or SiC devices but also passive components like capacitors and inductors.
Robust Gate Drive⁢ Design: GaN and SiC devices require carefully designed gate drive circuits to ensure proper switching and prevent unwanted oscillations.
Overvoltage and Overcurrent Protection: Implementing robust protection mechanisms is essential to protect the devices from damage due to voltage ‍spikes⁣ or excessive current.
Thorough Testing ⁤and Validation: Rigorous testing under various operating conditions is crucial to identify potential weaknesses and ensure ⁢long-term reliability.

Power Design Considerations for Services up to 50 kW

For⁤ power ⁢designs targeting services up to 50 kW, the considerations mentioned above become even more critical. This power range often involves applications where size, weight, and efficiency are paramount.

Compact Design: GaN and SiC enable more compact designs, but this also means higher power density and increased thermal⁤ challenges.
High ⁤Efficiency: Achieving ⁢high efficiency is crucial to minimize energy losses and reduce operating‍ costs.
* Cost Optimization: ⁢Balancing performance and⁤ cost is always a key consideration. Selecting the right components and thermal management solutions is essential to achieve the desired performance at an acceptable cost.

The Future of ⁤Power Electronics

GaN and SiC are revolutionizing power electronics, enabling more efficient, compact, and⁢ reliable power solutions. By focusing ⁣on thermal management and robust design practices, we can unlock the full potential of these advanced materials and pave the way for a more enduring future.as technology evolves, we can expect
