Transparent Silicon-Photonics Chips Enable Advanced Curved Displays
- Transparent silicon-photonics chips that are mechanically flexible could soon enable curved augmented-reality displays and body-conforming health monitors, according to a study published in the journal Optica.
- Silicon photonics replaces electricity with light to transmit and process data on semiconductor chips, transforming bulky optical systems into compact components.
- To test the durability of the platform, the MIT team subjected single chips to rigorous mechanical stress.
Transparent silicon-photonics chips that are mechanically flexible could soon enable curved augmented-reality displays and body-conforming health monitors, according to a study published in the journal Optica. Researchers at the Massachusetts Institute of Technology (MIT) and NY Creates have developed a scalable, wafer-scale fabrication process that overcomes the traditional rigidity and opacity of semiconductor optics.
Scalable Fabrication of Flexible Silicon Wafers
Silicon photonics replaces electricity with light to transmit and process data on semiconductor chips, transforming bulky optical systems into compact components. Until now, standard microelectronics foundry processes yielded chips that were strictly rigid and opaque. While recent laboratory demonstrations achieved flexibility or transparency in isolated devices, teams could only fabricate a few units at a time. To solve this scaling barrier, MIT researchers collaborated with engineers at NY Creates at the Albany NanoTech Complex. According to the research team, they established a fabrication workflow using standard semiconductor manufacturing techniques to produce flexible, transparent silicon-photonics chips across large 300-millimeter wafers. The manufacturing sequence begins like a traditional rigid silicon wafer. Researchers deposit and pattern microscopic optical wires, known as waveguides, onto a rigid silicon substrate. They then bond a temporary silicon wafer on top, flip the entire structure over, and remove the original substrate from what becomes the top of the wafer.
Validation and Bending Performance

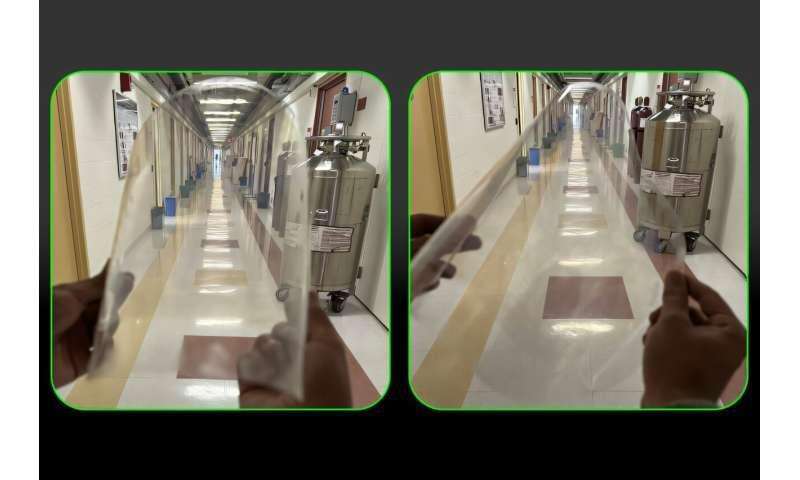

To test the durability of the platform, the MIT team subjected single chips to rigorous mechanical stress. Researchers bent a chip thousands of times around cylinders of various diameters—shrinking down to the width of a small screw—with no recorded drop in performance. Furthermore, optical evaluations confirmed that looking directly through the chips introduced minimal haze or optical distortion. “We’ve now developed a wafer-scale process that produces wafers that are mechanically flexible and optically transparent, enabling novel applications that weren’t previously possible with silicon photonics,” said Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science at MIT and senior author of the study.
New Applications for Curved Displays
The breakthrough opens design pathways for optical systems that require tight curves or conformal placement. Potential real-world uses include transparent augmented-reality displays built to match the exact contour of a pilot’s helmet, as well as discrete health-monitoring sensors that conform seamlessly to the human body. By utilizing the foundry at the Albany NanoTech Complex, the team aims to make the platform widely accessible to other groups within the research community. Alongside Notaros, the paper’s co-authors include lead author Tal Sneh and Andres Garcia Coleto from MIT, Thomas Dyer and Kevin Fealey of NY Creates, and Milica Notaros.
